Context Flowchart Walkthrough¶

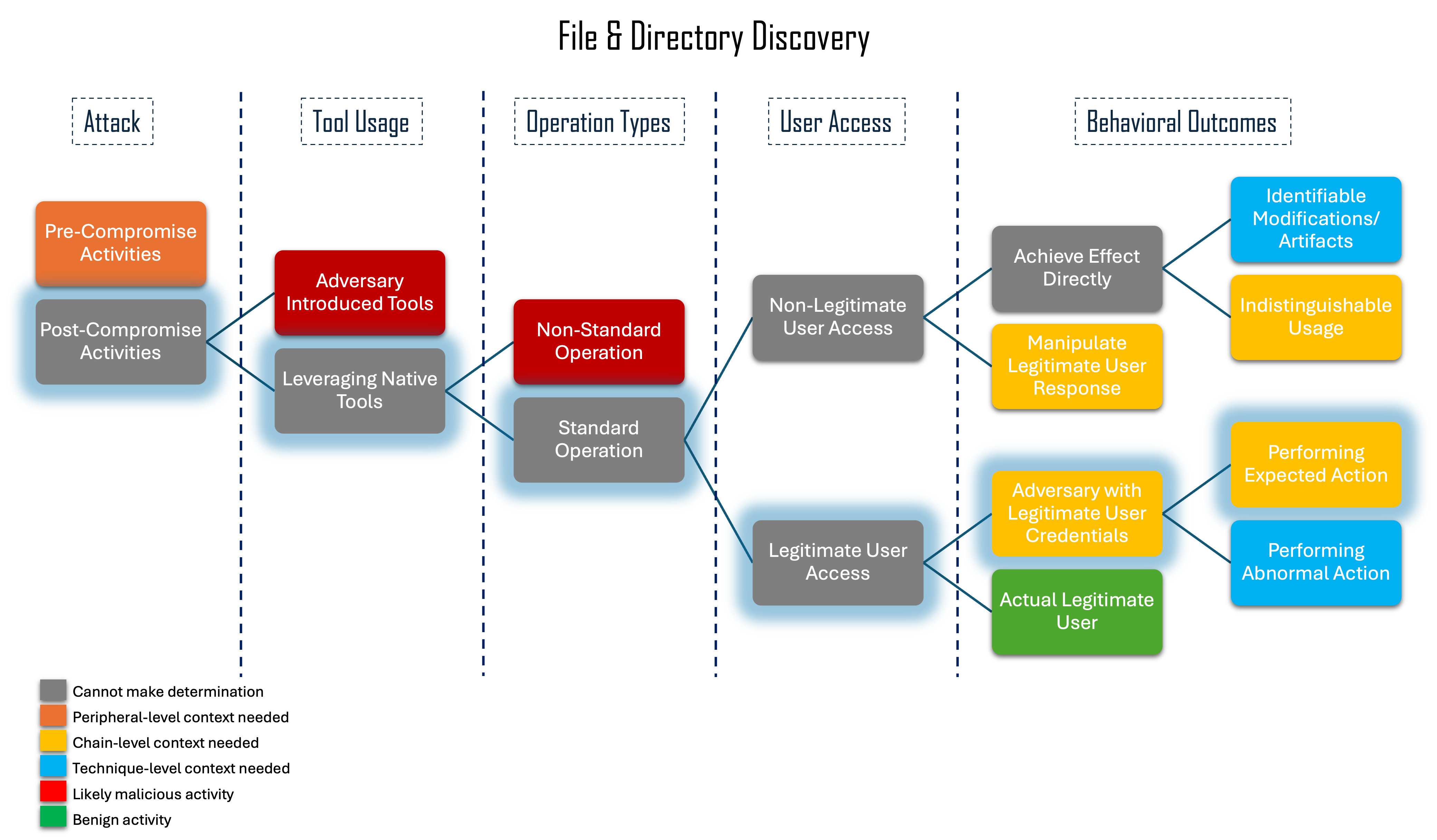

The context flowchart above shows that File and Directory discovery appears as a standard operation and appears as legitimate user access, but is in reality an adversary with legitimate user credentials performing the activity. When File and Directory Discovery is performed as part of an attack, it may appear benign when viewed in isolation. Consequently, as depicted by the flowchart, it is important to perform a chain-level contextual analysis to determine whether a specific occurrence of file and directory discovery behaviors are displaying malicious intent.

Chain-Level Analysis¶

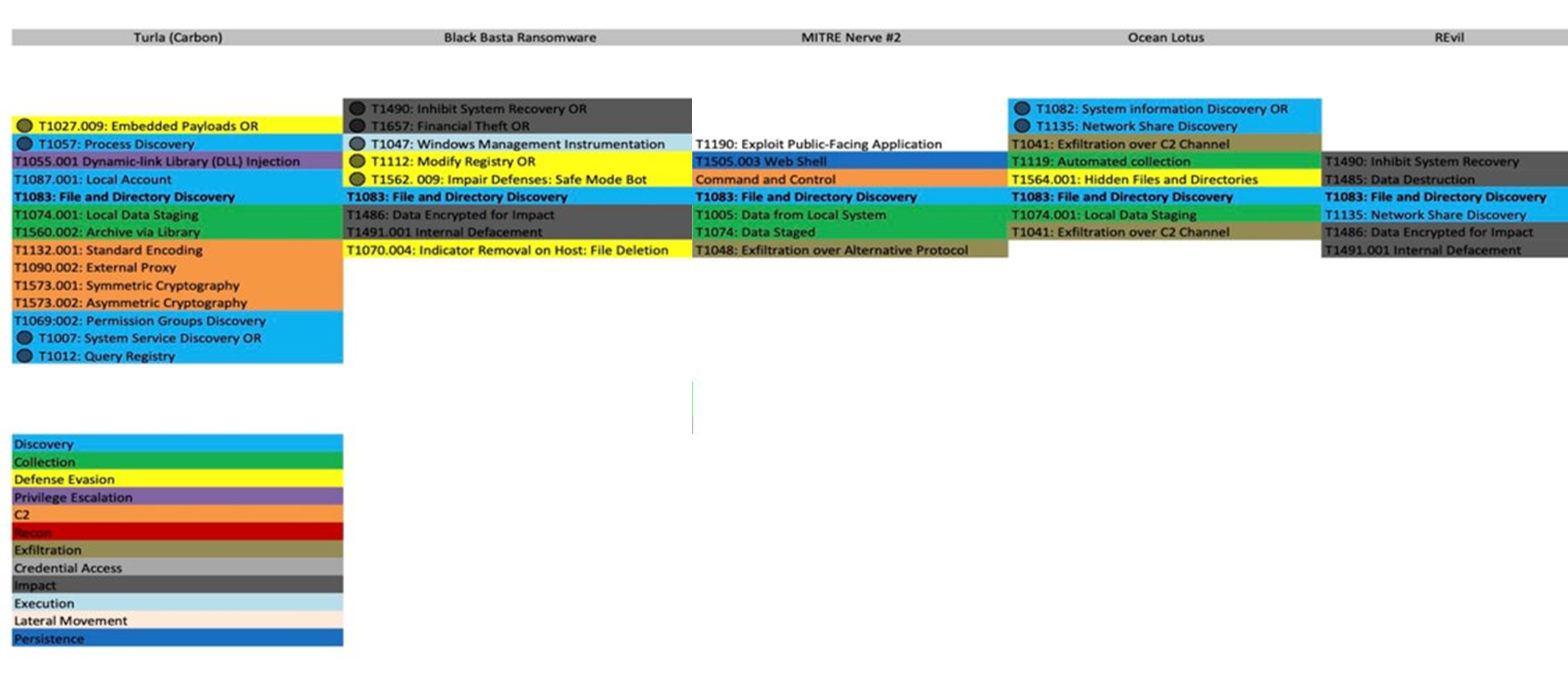

The image above shows a chain level analysis of adversary campaigns that include File and Directory Discovery. An examination of the chain level analysis concludes that File and Directory Discovery is generally followed by Data Encrypted for Impact (T1486) or Data Staged (T1074).

The team chose to focus on the ransomware scenario, zeroing in on the connection between File and Directory Discovery and Data Encrypted for Impact.

Original Analytic¶

The team did not start with an existing File and Directory discovery-focused analytic as many we found were brittle in nature. Instead, our resulting analytic was based upon the investigative research conducted as a part of this project.

The following analytic was found for Data Encrypted for Impact:

title: Suspicious Reg Add BitLocker
id: 0e0255bf-2548-47b8-9582-c0955c9283f5
status: test
description: Detects suspicious addition to BitLocker related registry keys via the reg.exe utility
references:
  - https://thedfirreport.com/2021/11/15/exchange-exploit-leads-to-domain-wide-ransomware/
author: frack113
date: 2021-11-15
modified: 2022-09-09
tags:
  - attack.impact
  - attack.t1486
logsource:
  category: process_creation
  product: windows
detection:
  selection:
    CommandLine|contains|all:
      - REG
      - ADD
      - \SOFTWARE\Policies\Microsoft\FVE
      - /v
      - /f
    CommandLine|contains:
      - EnableBDEWithNoTPM
      - UseAdvancedStartup
      - UseTPM
      - UseTPMKey
      - UseTPMKeyPIN
      - RecoveryKeyMessageSource
      - UseTPMPIN
      - RecoveryKeyMessage
  condition: selection
falsepositives:
  - Unlikely
level: high

The above analytic looks for process creation events where regedit is being used via the command line to add values to registry keys that are specific to BitLocker, setting conditions for the utility to be used for ransomware.

Because the original “Suspicious Reg Add Bitlocker” analytic uses a process creation event (which we are assuming could be Sysmon Event ID 1), we can conclude it is triggered at the kernel level, and so it is scored as a K. Because it is looking for command line utilization to modify registry keys, it is scored at the “Core to Pre-Existing Tool or Inside Boundary (3)” level. This results in an overall score of 3K.

Improved Analytic¶

### CORRELATION RULE
title: Correlation - File and Directory Discovery Followed by Suspicious Reg Add BitLocker
status: test
description: Detects file and directory discovery followed by suspicious addition to BitLocker related registry keys via the reg.exe utility
references: https://github.com/SigmaHQ/sigma-specification/blob/main/specification/sigma-correlation-rules-specification.md
author: Kayla Kraines (MITRE CTID)
date: 2025-03-25
correlation:
    type: temporal_ordered
    rules:
        - file_directory_discovery
        - suspicious-bitlocker-reg-event
timespan: 60m
falsepositives:
    - Unlikely
level: high
---
### BASE RULES
title: Suspicious Reg Event BitLocker
status: test
description: Detects suspicious modification to BitLocker related registry keys
name: suspicious-bitlocker-reg-event
references: https://thedfirreport.com/2021/11/15/exchange-exploit-leads-to-domain-wide-ransomware/
author: MITRE
date: 2025-03-21
modified: 2025-03-21
tags:
    - attack.impact
    - attack.t1486
logsource:
    category: registry_event
    product: windows
detection:
    selection:
        TargetObject|contains:
            - 'EnableBDEWithNoTPM'
            - 'UseAdvancedStartup'
            - 'UseTPM'
            - 'UseTPMKey'
            - 'UseTPMKeyPIN'
            - 'RecoveryKeyMessageSource'
            - 'UseTPMPIN'
            - 'RecoveryKeyMessage'
    condition: selection
falsepositives:
    - Unlikely
level: high
---
title: File & Directory Discovery
status: test
description: Detects commands that enumerate or display files or directories.
name: file_directory_discovery
author: Kayla Kraines (MITRE CTID)
date: 2025-03-25
tags:
    - attack.discovery
    - attack.t1083
logsource:
    product: windows
    category: process_creation
detection:
    selection:
        - OriginalFileName:
            - 'ls.exe'
            - 'dir.exe'
            - 'tree.exe'
            - 'cat.exe'
            - 'find.exe'
            - 'locate.exe'
        - CommandLine|contains:
            - 'Get-ChildItem'
    condition: 1 of selection
falsepositives:
    - Legitimate user activity

The improved analytic is a direct correlation between the improved “Suspicious Reg Add Bitlocker” analytic and a new “File and Directory Discovery” analytic.

The Suspicious Reg Add Bitlocker analytic was improved to trigger on the registry key being changed, not only via command line. This enables the analytic to cover many more implementations of this activity. This analytic is still scored at 3K.

The File and Directory Discovery analytic is triggering on process creation at the Kernel-Mode at the “Core to Pre-Existing Tool or Inside Boundary” level and is therefore scored at 3K.

Overall, the final analytic is scored at 3K, which is the same scoring as the original analytic. This analytic will trigger when File & Directory Discovery co-occurs with the SOFTWAREPoliciesMicrosoftFVEEnableBDEWithNoTPM Bitlocker reigstry key being editing.

Chaining these two analytics drastically improves the impact that these analytics may have. The “File and Directory Discovery” analytic alone would trigger frequently on regular user activity, but correlating it with the “Suspiciuos Reg Add Bitlocker” analytic makes it more useful in alerting on suspicious enumeration of files and directories.
